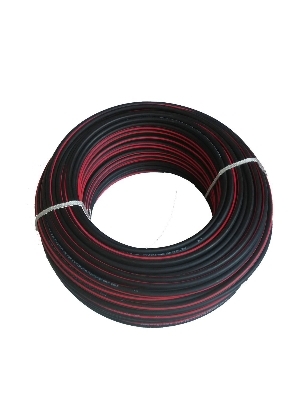

Solar Dc Cable

Name: Solar Dc Cable
Brand: NANDHA SOLAR SOLUTIONS
Price: 100 INR
Availability: InStock

Price 100 INR/ Meter

Get a Price/Quote

Solar Dc Cable Specification

Product Type
Solar DC Cable

Material
Tinned Copper Conductor, XLPE Insulation

Operating Temperature
-40C to +90C (continuous), up to 120C (short-term)

Max Voltage
1000V (DC)

Max System Voltage
1000V DC

Cable Length
100 meters (customizable)

Size
4 sq.mm (other sizes available)

Weight
Approx. 12 kg/roll

Color
Black & Red

Insulation Type
Cross-linked Polyethylene (XLPE)

Application
Solar power plants, rooftop systems and other DC systems

Voltage Rating
600/1000 V AC, 1000/1800 V DC

Outer Sheath
UV Resistant Halogen-Free Compound

Conductor Material
Stranded Tinned Copper

Packaging Type
Coil/Roll

Resistance
UV, Ozone, and Weather Resistant

Insulation Thickness
0.8 mm (for 4 sq.mm cable)

Rated Current
Up to 55A (depends on cross section)

Sheath Thickness
1.14 mm (for 4 sq.mm cable)

Minimum Bending Radius
5x outer diameter

Fire Performance
Flame Retardant, Low Smoke

Solar Dc Cable Trade Information

Minimum Order Quantity
100 Meter

Supply Ability
100 Per Day

Delivery Time
2 Days

Solar Dc Cable About

Tinned copper conductor, XLPO insulated & sheathed, 1.5kV DC, UV resistant, flame retardant, halogen-free, suitable for solar panel to inverter connections, as per IEC 62930 / EN 50618.

High-Performance Conductor and Insulation

Our Solar DC Cable features stranded tinned copper as the conductor, known for excellent conductivity and corrosion resistance. The cross-linked polyethylene (XLPE) insulation enhances electrical and thermal performance, ensuring dependable operation even under extreme environmental conditions. This construction makes the cable particularly suited for demanding solar power and DC applications.

Enhanced Safety and Durability

Safety is prioritized with a flame retardant, low smoke outer sheath that is halogen-free, reducing hazardous emissions during fire incidents. The cable is UV, ozone, and weather resistant, making it ideal for outdoor installations. This robust design ensures reliability and longevity in solar plant environments.

Flexible Sizing and Application

Available in standard 4 sq.mm and other customized cross-sectional sizes, the cable is suitable for a range of current and voltage requirements. Designed for easy handling and installation due to its flexible structure and minimum bending radius, it caters to applications from residential rooftop systems to large-scale solar plants.

FAQ's of Solar Dc Cable:

Q: How is the Solar DC Cable installed in solar power systems?

A: The Solar DC Cable is installed by connecting the DC output from photovoltaic panels to inverters and other system components. Ensure adherence to the minimum bending radius (5x the outer diameter) during installation for optimal performance and cable longevity.

Q: What benefits does the tinned copper conductor provide for solar cables?

A: The stranded tinned copper conductor offers excellent electrical conductivity and superior resistance to corrosion, ensuring minimal energy loss and extended cable life, even in harsh outdoor environments typical of solar power applications.

Q: When should I select a halogen-free, flame-retardant solar cable?

A: A halogen-free, flame-retardant cable should be chosen when safety and environmental standards are important, such as in residential or commercial installations, since it significantly minimizes toxic and corrosive gas emissions in case of fire.

Q: Where can this cable be used apart from solar applications?

A: Besides solar plants and rooftop systems, this cable is also ideal for any low-voltage DC applications, including off-grid energy systems, battery banks, and other power installations requiring weather and fire resistance.

Q: What is the process for customizing cable length or cross-sectional size?

A: To customize cable length or cross-sectional size, contact your supplier or manufacturer with your specific requirements. Most providers offer flexible solutions and advise on suitable specifications based on your project needs.

Q: How does the cable maintain performance in extreme temperatures?

A: Thanks to its XLPE insulation and robust sheath material, the cable operates reliably in temperatures ranging from -40C to +90C continuously, and can withstand short-term exposure up to 120C, making it suitable for diverse climates.
