Agriculture solar system

Name: Agriculture solar system
Brand: NANDHA SOLAR SOLUTIONS
Price: 40000 INR
Availability: InStock

Price 40000 INR/ Kilowatt

Get a Price/Quote

MOQ : 10 Kilowatts

Agriculture solar system Specification

Product Type
Agriculture Solar System

Material
Crystalline Silicon, Anodized Aluminium Frame

Number of Cells
72 cells per panel

Operating Temperature
-40C to +85C

Max Voltage
Voc (per panel) approx 44 V

Max System Voltage
1000 V DC

Panel Efficiency
17-19%

Cable Length
10-30 meters (customizable)

Number Of Diodes
Bypass diodes included in each panel string

Maximum Snow Load
5400 Pa

Size
Standard 72-cell panels, approx. 2m x 1m

Dimension (L*W*H)
Array variable, typical panel: 2000 mm x 1000 mm x 40 mm

Weight
Around 23 kg per panel

Color
Blue/Black (mono/multi-crystalline)

AC Output Voltage
230V/415V, 50 Hz (customizable)

Ambient Humidity
0 ~ 100%

Mounting Structure
Hot-dip galvanized steel frame, ground-mounted

Application
Agricultural water pumps, drip irrigation, farm power supply

Protection Level
IP65 (Outdoor Electricals)

Junction Box
Weather Proof, UV resistant

Inverter Type
MPPT Solar Inverter, On-Grid/Off-Grid optional

Wind Resistance
2400 Pa

System Capacity
1 kW to 100 kW+ (customizable for farm requirement)

Battery Backup (Optional)
Solar Gel/Lead Acid/Li-ion, 2-8 hours (optional)

Agriculture solar system Trade Information

Minimum Order Quantity
10 Kilowatts

Supply Ability
5 Kilowatts Per Day

Delivery Time
2 Days

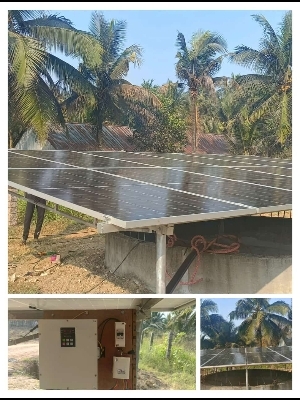

About Agriculture solar system

Solar PV system with highefficiency panels DCAC solar pump controller suitable for irrigation operates on 1HP10HP pumps weatherproof design automatic operation low maintenance with protections dry run overload short circuit

Built Strong for Agricultural Demands

This solar system features a hot-dip galvanized steel mounting structure, ensuring durability and stability even in challenging farm environments. Its design accommodates heavy winds, snow, and high humidity, making it ideal for year-round agricultural use. The structure is compatible with standard-sized, high-efficiency crystalline silicon panels, each rigorously tested for long-lasting performance.

Versatile Power and Protection

With flexible, customizable system capacities and output voltages, farmers can tailor installation according to specific water pump or power supply requirements. The IP65-rated electricals and weatherproof junction boxes provide reliable protection against outdoor elements, while the panels' bypass diodes boost energy generation even in partially shaded conditions. Battery backup options ensure continuous supply during low-sunlight periods.

Simple Installation and Maintenance

Designed for ease of installation, this ground-mounted system comes with variable cable lengths and modular panel arrays to suit diverse farm layouts. Maintenance is minimal, and the anodized aluminum frames resist corrosion. Distributors and service providers assist from consultation through installation and long-term support, making this a hassle-free investment for agricultural operations.

FAQ's of Agriculture solar system:

Q: How does the agriculture solar system benefit farm operations?

A: The system delivers consistent and clean energy for agricultural water pumps, drip irrigation, and general farm power needs. Its design minimizes electricity costs, reduces reliance on diesel generators or unstable grids, and supports sustainable farming with lower environmental footprint.

Q: What are the customization options for system capacity and output voltage?

A: Farmers can choose from system capacities ranging from 1 kW up to 100 kW or greater, and select output voltages of 230V or 415V at 50 Hz to match the requirements of different farm applications or machinery. The solution is tailored as per the unique demands of each installation.

Q: Where should this solar system be installed for optimal performance?

A: The ground-mounted structure should be installed in open, unshaded areas to maximize sun exposure. Service providers offer site assessment and professional installation to ensure the best orientation and inclination for maximum energy yield on agricultural land.

Q: What is the installation and maintenance process for this system?

A: Installation is typically completed by qualified service providers who design the array layout, set up the hot-dip galvanized steel mounting, and integrate the electrical components. Maintenance mainly involves periodic cleaning of the panels and checking of connections, with little ongoing effort due to robust material choices.

Q: How does the system ensure protection against harsh environmental conditions?

A: All electrical components are rated IP65 for dust and water resistance, with junction boxes that are UV-resistant and weatherproof. The mounting structure can endure wind pressures up to 2400 Pa and snow loads up to 5400 Pa, enabling operation in diverse climates.

Q: Can the solar system run independently from the grid, and what battery options are available?

A: Yes, both on-grid and off-grid operation modes are supported. For off-grid use or backup, farmers can opt for solar gel, lead-acid, or lithium-ion batteries, enabling 2 to 8 hours of autonomous energy supply during cloudy weather or nighttime usage.
